Ruvimat D10 – 25x2m

//Ruvimat D10 – 25x2m
  • Ruvimat D10

Ruvimat D10 – 25x2m

 150.00

PVC Roofing membrane suitable for flat roofs up to 1000m²



Product dimensions

Size: 50m²

Thickness: 40mil (1mm)

Length: 25m Width: 2m

Price:  3 EUR/m²

Package: Hard tube and polythene foil

Product Description

Product details

Place of origin: Bulgaria, Europe

Brand: Ruvitex

Model: Ruvimat D10

Description

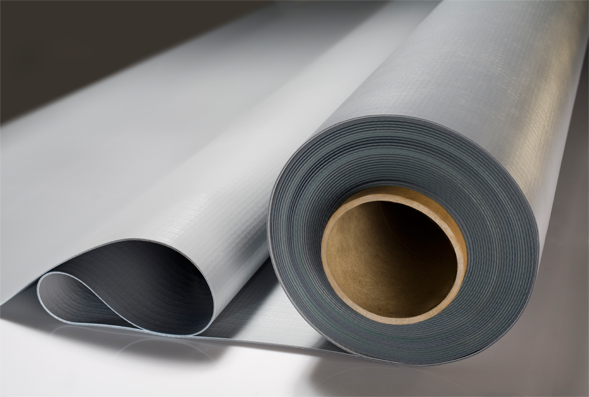

Ruvimat D10 is a Tri-Ply (three-layer) polymer membrane based on a high quality plasticized polyvinylchloride (PVC) and a built-in reinforcement polyester grid.

Dimensions

Thickness: 1mm
Length: 25m
Width: 2m



Characteristics and Advantages

  • Watertight
  • Long life
  • Recyclable
  • UV Resistant
  • Agressive liquids resistant
  • Easy, fast and safe installation
  • High vapor permeability
  • Excellent flexibility on negative temperatures
  • Resistant to micro-organisms
  • Volume stability on big temperature differences
  • High toughness and tension index
  • Good peeling strength for welding.
  • Flame retardant character.



Appearance

Surface: Matte

Color: Light grey (RAL7047)

Custom colors of the upper layer available for purchases of 4000m² and above

Package

Package type: Hard tube and polythene foil

Roll weight: 60kg

Regulatory Document EN 13956: 2012
Appearance deffects missing БДС EN 1850-2
Lenght 25m (-0%/+5%) БДС EN 1848-2
Width 2m (-0.5%/+1%) БДС EN 1848-2
Straightness ≤30mm БДС EN 1848-2
Flatness ≤10mm БДС EN 1848-2
Thickness 1mm (-5%/+10%) БДС EN 1849-2
Weighing 1,2kg/m² (-5%/+10%) БДС EN 1849-2
Watertight Yes БДС EN 1928 method B
Reaction to fire Class E (БДС EN ISO 1925-2 Classification by БДС EN 13501-1
Joints peel resistance ≥300N/50mm БДС EN 12316-2
Joints shear resistance ≥800N/50mm БДС EN 12317-2
Coefficient of vapor diffusion 1mm (-5%/+10%) БДС EN 1931



Tensile strenght БДС EN 12311-2 method A
Lengthwise ≥800N/50mm
Across ≥800N/50mm



Tear resistance БДС EN 12310-2
Lengthwise ≥180N
Across ≥180N




Size temperature stability (80°C/6h) БДС EN 1107-2
Lengthwise ±1%
Across ±1%



Additional Information

Dimensions
Length:

25m

Width:

2m

Size:

50m²

Thickness:

40MIL (1mm)
