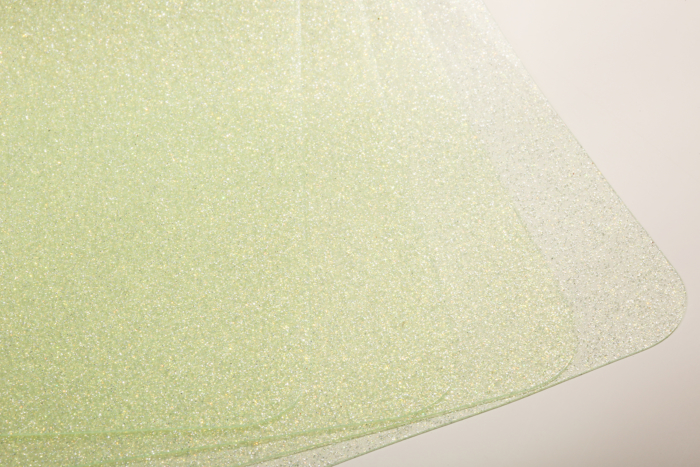

Ruvitex Prestige – Green

Transparent foil of plasticised polyvinyl chloride, with a pearly  effect and different level of saturation .

Size: 50m²

Package: Roll (Hard tube)

Length: 25m

Width: 2m

Category:

Product Description

Transparent foil of plasticised polyvinyl chloride, with a pearly effect and different level of saturation .

Application

Suitable for :

  • haberdashery articles / bags , dressing-cases , book-covers , business card holders, cases and more
  • beach products
  • wind-resistant curtains, kiosks, restaurants and more

Characteristics and advantages

  • Watertightness
  • Resistance to aging
  • Excellent resistance to environmental influences (UV rays / Acid rain)
  • High strength characteristics and elasticity
  • Flexibility at low temperatures
  • Excellent weldability
  • Does not contain DEHP / DOP / plasticizer
  • Does not contain toxic additions

Appearance: Rolled product

Composition: Transparent foil  from plasticized polyvinyl chloride with a pearlescent effect.

Packing

  • Each roll is packed in a transparent  polyethylene film
  • Roll length:   25,00 m
  • Roll width:  2,00 m

Storing: Rolls must be stored in horizontal position in the original packing without direct exposure to sunlight, rain and snow.

Visible defects Not present EN 1850-2
Length 25,00 (-0 % / +5 %) m EN 1848-2
Width 2,00 (-0,5% / +1%)m EN 1848-2
Tensile strength Method B EN 12311-2
warp ≥15 N/mm²
weft ≥15 N/mm²
Elongation Method B EN 12311-2
warp ≥200%
weft ≥200%
Tearing strength EN 12310-2
warp ≥80N
weft ≥60N
Joint peel resistance ≥200N/50mm EN 12316-2
Water tightness complies EN 1928 Method C
Resistance to artificial aging complies EN 1296
Resistance to UV radiation complies EN 1297
Changing the sizes after thermal

treatment (80˚С, 15 min) after 24h

EN 1107-2
warp ±1.5%
weft ±1.0%
Foldability at low temperature
/ without cracking /
up to -30°C EN 495-5

Appropriate ways for  joining the individual strips / canvas /

Considering the area of application and the conditions of use , recommended is the method of welding with high-frequency impulse.

The individual bands are overlaped with at least 40-50mm overlaping and in this area is carried out the welding.

In this way is obtained a strong, homogenous , welding joint.

Application limits

Temperature

The  foil  can be applied on territories where temperature of the environment  is not less than  -30 ° C and not higher than  +50 ° C.

Health and safety information

PVC  foil “Prestige” is an article within the meaning of Regulation (EC) 1907/2006 Article 3.3. A Material Safety Data Sheet following EC- Regulation 1907/2006, Article 31 is not required for the product when sold, shipped or used. The product has no harmful effects on environment and human health when stored and used as specified.

Reach

Regulation of the EU on chemicals and their safe use!

ЕО 1907/2006 /REACH/

PVC foil “Prestige” is an article within the meaning of Regulation (EC) No 1907/2006.The product does not contain any substances intended to be released from it under normal conditions of storage, use and service. Therefore, there are no registration requirements for substances in the article within the meaning of Article 7(1) of the Regulation.



Additional Information

Weight 50 kg
Color Saturation

25%, 50%, 75%, 100%

Thickness

0.4mm, 0.5mm, 0.6mm, 0.8mm
